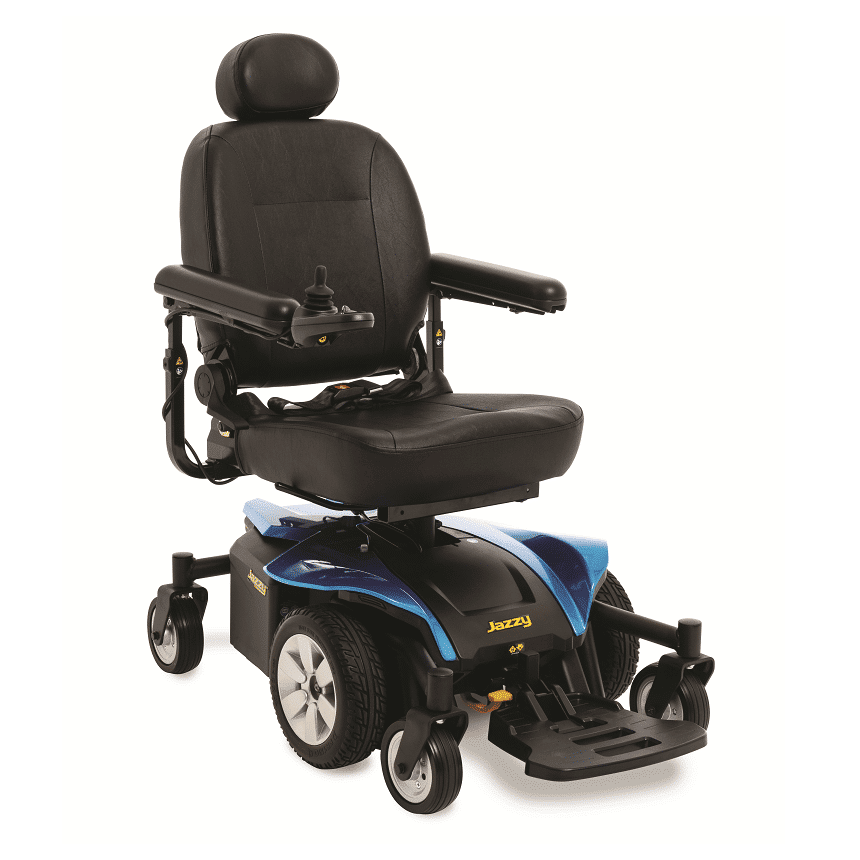

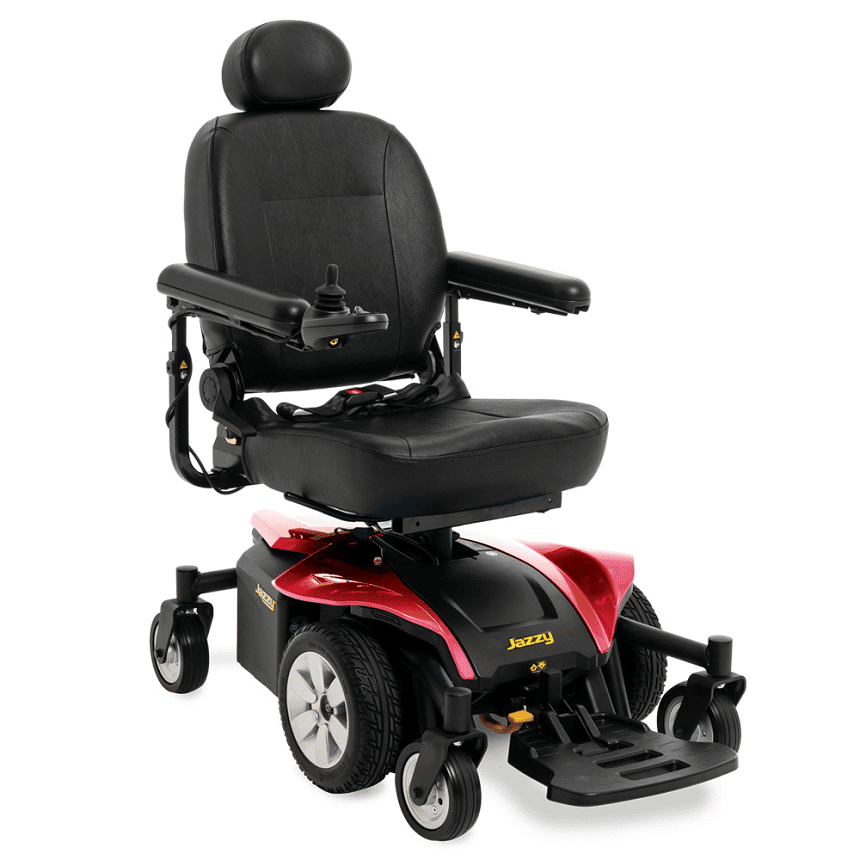

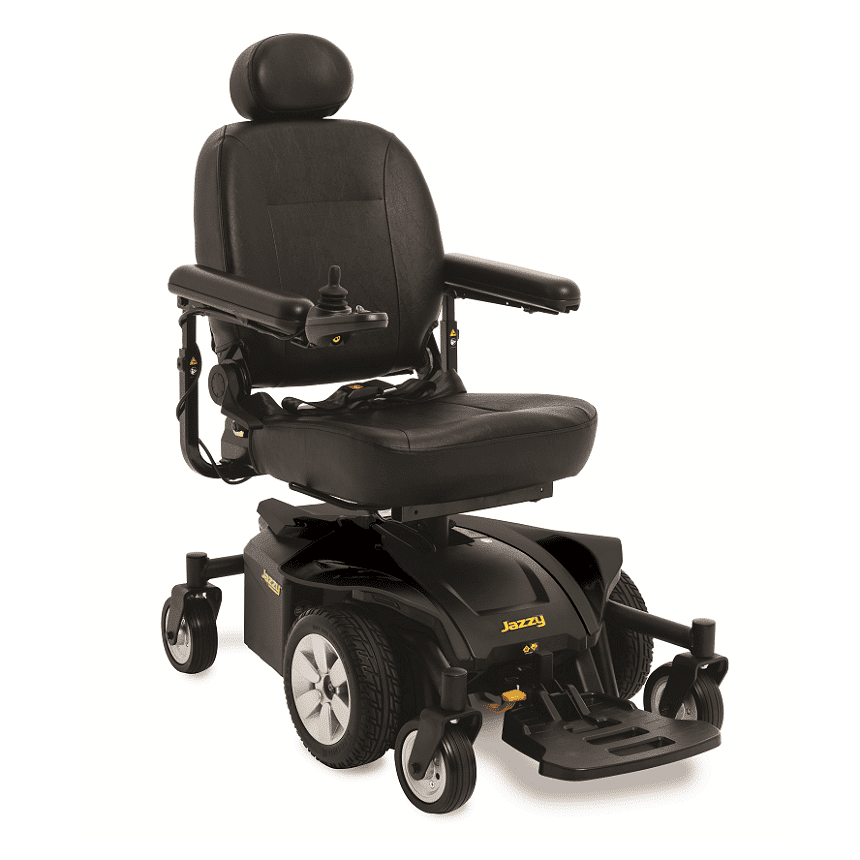

Jazzy Select® 6 2.0 * FDA Class II Medical Device
Jazzy Select 6 2.0 Features:
-
- 300 lbs. weight capacity
- Up to 4.3 mph
- 23.76″ turning radius
- Up to 19 miles per charge
- Active-Trac® Suspension combines with Mid-Wheel 6® Technology for a smooth, stable ride over uneven terrain

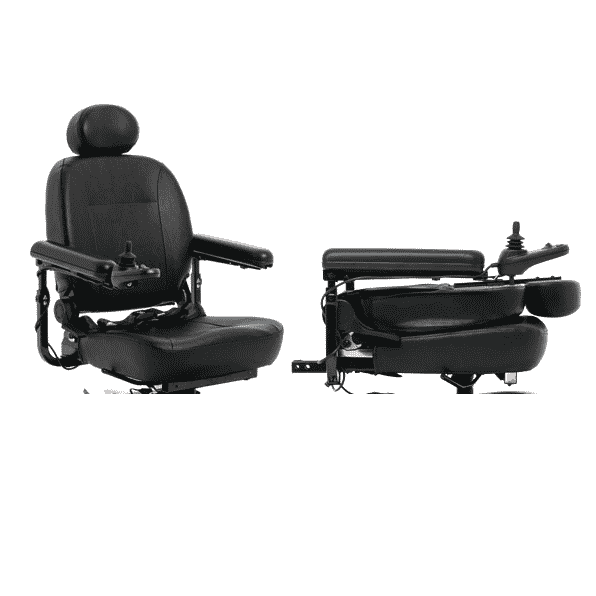

- Convenient, high-back folding seat is depth adjustable for maximum comfort and includes replaceable back and seat covers available in sizes: 16” x 16”-18”, 18” x 18”-20” and 20” x 18”-20
- Height-adjustable, flip-up foot platform offers ample foot room for maximum comfort
- Black, flat-free, non-marking tires saves your floors
- In-line joystick mount is equipped with performance matched electronics for easy operation
- Equipped with 60” lap belt for security and peace of mind
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
ASK AN EXPERT
Our Mobility & Medical Equipment Guides are ready to help!
Call: (951) 680-9181 or Email Us
Price Match Guarantee:
Give us the opportunity to earn your business with our Price Match Guarantee
Ask Management for Details
Jazzy Select® Specification
| Model |
Jazzy Select
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 22.5″ |
| Width1 | 23.74″ |
| Length1,2 | 44″ |
| Maximum Speed3 | Up to 4.3 mph |
| Ground Clearance1 | 0.75 @ motor bracket |
| Front Wheels | 5″ solid casters |
| Drive Wheels | 10″ solid |
| Rear Wheels | 5.75″ solid casters |
| Drivetrain | Two motor, mid-wheel drive® |
| Braking System | “Intelligent Braking” electronic regenerative, disc park brake |
| Suspension Type | Active-Trac® |
| High-Back Seat Size | 16″x16″-18″, 18″x18″-20″, 20″x18″-20″ |
| High-Back Seat-to-Floor Range | 21″-22″ |
| Standard Electronics | 40A, PG GC34 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,8 | Up to 19.4 miles |
| Battery Weight7 | 25.2 lbs. each |
| Weight of Heaviest Piece5 | 94 lbs. |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries. |
| Notes: Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. Without front riggings. Varies with user weight, terrain, battery type, battery condition and tire pressure. 40A, PG 6-key VR2 required with Power Elevating Seat Option. Does not include seat or battery weights. Not available with TRU-Balance?. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
